Synths using SSM 2044 VCF Filter

Examining usage of the classic Solid State Micro SSM 2044 VCF Filter Chip and SSI2044 chips in classic and modern synthesizers.

---

The SSM 2044 VCF filter is a 4-Pole (24db/octave) transistor ladder low pass filter, that has been used in many classic and modern synthesizers.   It was originally developed by Dave Rossum's Solid State Micro (SSM) in the early 1980s. Below are some of the well known synths that have used the SSM 2044 or modern recreations of the circuit from Sound Semiconductors, Inc, the SSI 2144 and CoolAudio's V2044A.

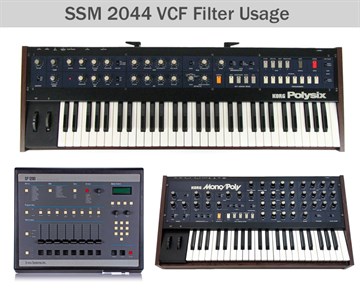

Vintage Synths that use SSM-2044:

Korg
Korg Monopoly
Korg Poly Six
Korg Trident Mk 1
Korg Trident Mk 2

PPG
PPG Wave 2.2
PPG Wave 2.3
PPG Expansion Voice Unit (EVU)

E-mu
E-mu SP-12
E-mu SP-1200
E-mu Emulator
E-mu Drumulator

Fairlight
Fairlight Series II/X

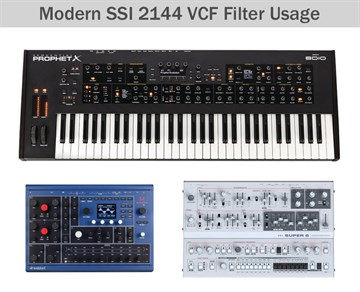

Modern Synths that use SSI-2044 or other clones:
These modern synths use either the new SSI-2144 or Cool Audio V2044A.

Waldorf
Waldorf M Wavetable Synthesizer (SSI2144)

Sequential
Sequential Prophet X (SSI2144)
Sequential Prophet XL (SSI2144)

Behringer
Behringer MonoPoly (Cool Audio V2044A)
Behringer Cat (Cool Audio V2044A)

UDO
UDO Super 6 Synth (SSI2144)
UDO Super 6 Desktop (SSI2144)
UDO Super Gemini (SSI2144)

Dreadbox
Dreadbox Nymphes (SSI2144)


More SSM-2044 Synths:
In addition to the above synths, the SSM-2044 has also been used in:

Banana Poly Synth
Crumar Bit 01
Crumar Bit 99
Doepfer A-105
Ensoniq SDP-1
Kawai K3
Kawai SX-210 / Teisco SX-210
Kawai SX-240 / Teisco SX-240
Mutable Instuments Shruthi-1
Octave Plateau Voyetra 8
SIEL DK-600
SIEL Kiwi
SIEL Opera 6
Simmons SDS5
Solton Programmer 24

Modern Manufacturing of SSM-2044 VCF Filter Chip Clones:


Sound Semiconductor, Inc
SSI, the modern evolution of Dave Rossum's SSM company, has a modern version of the 2044, called the SSI-2144.  This is the most authentic modern recreation of the classic SSM2044 filter chip.
https://www.soundsemiconductor.com/



CoolAudio
CoolAudio, a division of MusicTribe/Behringer, created a modern knockoff of the 2044, called the V2044A
https://www.coolaudio.com/buy.php
https://cabintechglobal.com/v2044a



More Info on Some Other Legendary VCF Filter Chip Models
CEM 3320 - Oberheim, Sequential, Roger Linn, PPG, Fairlight, Behringer, Elka, etc
SSM 2040 - Sequential, E-mu, Groove Synthesis, Buchla, etc
